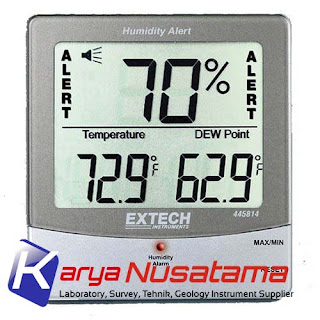

Jual` Thermo-Hygrometer Extech 445814

Hygro-Thermometer Humidity Alert w/Dew Point

User Programmable Alarms
Warning of High or Low Humidity Conditions

Features:

Large, easy-to-read triple LCD displays % Relative Humidity, Temperature and Dew Point
%RH audible and visual alarms, with adjustable set points, alert when humidity exceeds set limit
Max/Min with Reset function
Complete with built-in stand, wall mount bracket, and 2 AAA batteries

Applications:

In summertime, identifies and warns when conditions for mold growth exist
In wintertime, identifies and warns when low humidity conditions for static electricity exist
Air temperature and dew point temperature indicate where condensation may occur
Monitor conditions in laboratories, storage areas and other controlled environment settings

Specifications
Humidity :	10 to 99%
Temperature :	14 to 140°F (-10 to 60°C)
Basic Accuracy :	±4%RH; ±1.8°F/1°C
Dimensions :	4.3 x 3.9 x 0.78" (109 x 99 x 20mm)
Weight :	6oz (169g)

Untuk Pemesanan segera hubungi :
Contact : Aditya Kurniawan
Telpon : 02199317739 / 085716241676
email : adit.knt@gmail.com
YM : cs_knt1
Blog : karyanusatama.blogspot.com
Indonetwork : indonetwork.co.id/kntonlinestore
Website : www.karyanusatama.com

Kamis, 20 Desember 2012

Jual` Cup Anemometer,Barometer,Humidity,Temperature Lutron ABH-4224

CUP ANEMOMETER/BAROMETER/HUMIDITY/TEMP.
Model : ABH-4224
* Air velocity : 0.9 to 35.0 m/s, ft/min., km/h, mile/h, knots.
* Barometer : 10 to 1100 hPa, mmHg, inHg.
* Humidity : 10% to 95% RH, Dew.
* Temperature : 0 to 50 °C, °C/ °F.
* All in one, hand held type.
* Cup type probe, no wind direction.
* Hold, Record (max., min.).
* DC 1.5V battery (UM-4, AAA) x 4.

Untuk Pemesanan segera hubungi :
Contact : Aditya Kurniawan
Telpon : 02199317739 / 085716241676
email : adit.knt@gmail.com
YM : cs_knt1
Blog : karyanusatama.blogspot.com
Indonetwork : indonetwork.co.id/kntonlinestore
Website : www.karyanusatama.com

Sabtu, 24 November 2012

Jual` Kompas Brunton 5010

The newest and most advanced Transit, incorporating suggestions and ideas from professionals that make this the ultimate tool for their use. The solid aluminum, waterproof Geo Transit contains a fast, magnetic north seeking, rare-earth magnet, balanced on a sapphire jewel bearing for quick measurements. The most noticeable feature is the hinge inclinometer, accurate to +/- 2°. This feature allows simultaneous trend and plunge measurements, reducing the number of measurements required in the field. An innovative needle design can be locked or unlocked.

Features :

Adjustable needle locking mechanism
Hinge clinometer with 1° increments for 1/2° readable dip measurements
Two long-level bubbles on the outside of the aluminum housing for no guess leveling from the sides or the bottom
Cover hinge assembly designed for increased durability
"Buck Horn" style sights for increased accuracy when sighting azimuth or vertical angles
Single NdFeB magnet resists demagnetization better than any other type of magnet
Azimuth accuracy ±1/2° with 1° graduations
Vertical angle accuracy ±1/2° with 1° graduations and 10 minute vernier
Vertical angle measurements to ±90° or 100% grade
Percent grade scale with increments of 5%
Induction dampened needle for quick, accurate readings
Sapphire jewel bearing allows for smooth needle movement
Magnetic declination adjustment allows for east or west declination settings to +/-180°
Precision aligned mirror with convenient "see-through" sighting capability
Aluminum billet body assembly makes the GEO nearly indestructible
6061-T6 hard anodized aluminum body for permanent color and scratch resistance
Ball & socket tripod mount is centered for increased accuracy of rotation
O-rings make the GEO Waterproof for increased reliability
Leather case included
Overall dimensions: 3.8"x2.8"x1.3"
Weight: 12.8 oz
Material : Steel
Limited lifetime warranty
Made in the USA

Jual` Kompas Brunton 5008

With a body made of composite materials, this Transit is a lighter, more affordable alternative. It incorporates a cast NdFeB rare-earth magnet, precisely balanced on a sapphire bearing, resulting in a powerful magnet, which quickly seeks magnetic north and permits faster readings.

Features :

Single NdFeB magnet resists demagnetization better than other types of magnets for increased reliability
Vertical angle measurements to +/- 90° or 100% grade
A percent grade scale with increments of 5%
Induction dampened needle for quick, accurate readings
Sapphire jewel bearing allows for smooth needle movement
Magnetic declination adjustment allows for east or west declination settings to +/- 180°
Short and long sights for increased accuracy when sighting azimuth or vertical angles
Precision aligned mirror with convenient "see-through" sighting capability
Composite body material has less thermal retention
Ball & socket tripod mount for increased accuracy
O-rings make the ComPro waterproof for increased reliability
Leather case included
Overall dimensions: 3.2"x2.8"x1.3"
Weight 5.7 oz.
Material : Fiber
Made in the USA

Jual` Kompas Brunton 5006

The design for the International Pocket Transit effectively reduces needle "dip" when professionals travel to different hemispheres. (Call us for the special balancing required for absolute precision in distant areas.) Powerful Alnico V magnets are mounted to a polished, cupped sapphire jewel bearing, allowing for smooth needle movement.

Features :

Alnico V magnets for quick magnetic north needle alignment
Needle has a lower center of gravity allowing for use in a wider range of countries
Vertical angle measurements to ±90° or 100% grade
A percent grade scale with increments of 5%
Induction dampened needle for quick, accurate readings
Sapphire jewel bearing allows for smooth needle movement
Magnetic declination adjustment allows for east or west declination settings to ±180°
Short and long sights for increased accuracy when sighting azimuth or vertical angles
Precision aligned mirror with convenient "see-through" sighting capability
Cast aluminum body makes the International Pocket Transit nearly indestructible
Ball & socket tripod mount for increased accuracy
Sealed with silicon for waterproofing and increased reliability
Leather case included
Overall dimensions: 3.1"x2.8"x1.3"
Weight: 6.8 oz
Material : Iron
Made in the USA

Jual` Kompas Suunto KB-14

The KB-14 hand-bearing compass is an excellent tool for professionals with high demands on accuracy and usability when taking direction.

Product Info

Accuracy 1/3°
Graduation interval 0.5°
Anodized light-alloy housing
Optical adjustment
Damping liquid
Jeweled bearing
Declination correction (in D-versions)
Nylon pouch with belt-loop
Lanyard
Available for 5 geographic balancing zones
Dimensions: 75 x 52 x 15 mm
Weight: 115 g / 4 oz

Specfications
PRECISION INSTRUMENTS

Compass accuracy : 1/3°
Adjustable declination correction scale : optional
Anodized light-alloy housing : √
Graduation interval : 1/2°
Lanyard and brass loop : √
Nylon pouch with belt-loop : √
Optical adjustment : √
Thread hole for tripod : √

OTHER

Weight : 115 g / 4 oz

Jual` Kompas Suunto KB-20

Suunto KB-20 is a floating, light-weight hand-bearing compass that is an ideal instrument for marine, professional and outdoor use

Product Info

Accuracy 0.5°
Graduation interval 1°
Scale: 0-360°
Plastic casing
Damping liquid
Jeweled bearing
Optical adjustment
Lanyard
Floating
Available for 5 geographic balancing zones
Available in yellow or grey
Dimensions: 75 x 55 x 16 mm
Weight: 40 g

Specifications
OTHER

Weight : 40 g / 1.41 oz

PRECISION INSTRUMENTS

Compass accuracy : 1/2°
Floating plastic housing : √
Graduation interval : 1°
Lanyard : √
Optical adjustment : √

Jual` Kompas DQL-8

Product Description :
METAL BODY, PRECISION COMPASS, LEATHER BAG

SPECIFICATION :

Model	DQL-8
Needle	Induction dampened damping time ≤ 15' ' Red needle to S, white needle to N
Vernier	with vernier allowing for fine inclination measurement Vertical Accuracy(Direct reading): ± 10' Estimated reading: ± ½ ° VerticalRange: ± 90° or 0-100%
Circle	Graduation: 0-360° , Min. 1° , allowing for ½ ° (estimated) azimuthreading Diameter: Outer: 65-0.05mm; Inner: 55+0.2mm
Zero PIN	Allowing for magnetic deviationadjustment
Level(Bubble)	Circular Level: Allowing for azimuth measurement levelling; Accuracy: 30' ± 5' /2mm Plate Level: Allowing for inclination measurement levelling; Accuracy: 20' ± 5' /2mm
Peep Sight	Large Sight: Coming withlarge peep sightattached to the housing Small Sight: Coming with small peep sight attached to the cover
Standard Outfit	Instrument, Leather Caseand mini Tools
Optional Item	Ball-and-socket Tripod: DQL-JJ18 Equipped with non-magneticball-and-socketdetachable carrier (N. W.: 204g) Adjustable Height: 870mm~1380mm (34' ' ~54' ' ) N. W.: 2.2kg (including durable Canvas Carrying Bag CCB-1618) Per Shipping Carton--Qty: 6pcs; G. W: 20kg; Size: 0.20cbm (97cm ´ 67cm´ 30cm)
Packing Details	Instrument N. W.: 290g with Leather Case Per Shipping Carton-- Qty: 50pcs; G. W: 15kg Size: 0.04cbm (45cm ´ 35cm´ 25cm)

Jual` Abney Level Seco

The SECO Abney Level is ideal for preliminary surveys, landscaping, or DIY work where the determination of slope, angle, and percentage of grade is required. The Abney Level's scale is graduated in both degrees of incline and percentage of slope.

Use the Abney Level to find the slope and grade for:

Storm Drains
Paving
Landscape Design
Other DIY uses

Kamis, 22 November 2012

Jual` Analog Altimeter Barigo 39

Features :

Barigo Model 39 6x1000m / 6x3000ft Analogue Altimeter
Analogue 6000m altimeter
Jeweled movement altimeter 6000m or 18000ft, 1 rotation per 1000 m/3000ft with secondary n x 1000s window, with barometer , black metal case
Ø 65 mm, white dial Ø 60 mm,
weight 150 gr.
with leather case and thong.

TECHNICAL DATA :

Measuring range : 0 to 6000m/18000ft
1 turn of needle : 1000m/3000ft
Indication of 1000s on secondary dial window
Scale division : 10m / 20ft
Movement : 16 Jewels
Pressure Measurement : 970 to 1050 hPa / 28.7 to 31.3 inHg
Measuring Deviation : 0.25% max
Temperature Compensation : max 0.25m/C

Senin, 19 November 2012

Jual` Weather Station PCE-FWS 20

PCE-FWS 20 Meteorological Station with touch screen
has 5 sensors and a mast (for wind direction, wind speed, temperature, relative humidity and Rainfall), alarm, USB port and software

The PCE-FWS 20 Meteorological Station is a multi-functional device that will exceed your expectations. This meteorological station is for private and professional use. This meteorological station allows the accurate detection of wind direction, wind speed, temperature relative humidity and precipitation. This represents only a small part of the device functions. Furthermore, the meteorological station has different alarm functions for the available parameters. The meteorological data can be sent by radio to the base unit from a distance up to 100 meters. This device is equipped with the latest technology used in meteorological analysis. The touch screen allows to recall data onto the screen easily. The USB port and the cable which is included, allows to transmit data from the device to a computer. Data can be date and time stamped to ensure that it can be analysed effectively long after being collected. Software for analysing data is included, which enables you to analyse and check meteorological fluctuations, presenting data in graphs and diagrams for measurements over prolonged periods of time. Everything is included with the device so it is ready to be used straight out of the box.

Technical Specification

Indoor
Measurement ranges	Operating temperature: 0 ... +60 °C Humidity: 1 ... 99 % Atmospheric pressure: 919 ... 1,080 hPa
Resolution	Air temperature: 0,1 °C Humidity: 1 % Atmospheric pressure: 0.1 / 1.5 hPa
Radio control data update	48 seconds
Alarm duration	120 seconds
Outdoor
Measurement range	Operating temperature: -40 ... +65 °C Humidity: 1 ... 99 % Rain fall: 0 ... 9,999 mm Wind speed: 0 ... 180 km/h Indication of the wind direction
Resolution	Air temperature: 0.1 °C Humidity: 1 % Rainfall: 0.1mm (volume <1,000mm) / 1mm (volume >1,000mm)
Radio transmission data updated	48 seconds
Radio transmission range	up to 100m in the open air
Port	USB

Delivery contents
1 x Display with touch screen (3 x 1.5v batteries)
1 x temperature sensor with a support
1 x solar unit (2 x 1.5v rechargeable batteries)
1 x humidity sensor with a support
1 x rainfall sensor with a support
1 x air velocity sensor with a support
1 x wind direction sensor with a support
1 x vertical mast
1 x USB cable
1 x analysis software

Display unit dimensions 230mm x 150mm
External Sensors dimensions 660mm x 540mm

Jual` Weather Station Davis Vantage Vue

VANTAGE VUE®

The Vantage Vue® (#6250) wireless weather station includes two components: the Integrated Sensor Suite (ISS) (#6357) which houses and manages the external sensor array, and the console (#6351) which provides the user interface, data display, and calculations. The Vantage Vue ISS and console communicate via an FCC‐certified, license‐free frequency‐ hopping transmitter and receiver. Frequency‐hopping spread‐spectrum (FHSS) technology provides greater communication strength over longer distances and areas of weaker reception. User‐selectable transmitter ID codes allow up to eight stations to coexist in the same geographic area. (The Vantage Vue console can also receive and display data from any Vantage Pro2™ or Vantage Pro2 Plus ISS. The Vantage Pro2 Plus includes two additional sensors: the UV sensor and the solar radiation sensor.) The console may be powered by batteries or by the included AC‐power adapter. The wireless ISS is solar‐powered with a battery backup. Use WeatherLink™ for Vantage Vue to let your weather station interface with a computer, to log weather data, and upload weather information to the internet.

The Vantage Vue station relies on passive shielding to reduce solar‐radiation induced temperature errors in the outside temperature sensor readings.

Integrated Sensor Suite (ISS)
Operating Temperature	-40° to +150°F (-40° to +65°C)
Non-operating (Storage) Temperature	-40° to +158°F (-40° to +70°C)
Current Draw	0.20 mA (average), 30 mA (peak) at 3.3 VDC
Solar Power Panel	0.5 Watts
Battery	CR-123 3-Volt Lithium cell
Battery Life (3-Volt Lithium cell)	8 months without sunlight - greater than 2 years depending on solar charging
Wind Speed Sensor	Wind cups with magnetic switch
Wind Direction Sensor	Wind vane with magnetic encoder
Rain Collector Type	Tipping spoon, 0.01" per tip (0.2 mm with metric rain cartridge, Part No. 7345.319), 18.0 in2 (116 cm2) collection area
Temperature Sensor Type	PN Junction Silicon Diode
Relative Humidity Sensor Type	Film capacitor element
Housing Material	UV-resistant ABS & ASA plastic
ISS Dimensions	12.95" x 5.75" x 13.40" (329 mm x 146 mm x 340 mm)
Package weight:	5.44 lbs (2.47 kg)

Console Specifications
Console Operating Temperature	+32° to +140°F (0° to +60°C)
Non-Operating (Storage) Temperature	+14° to +158°F (-10° or +70°C)
Console Current Draw	0.9 mA average, 30 mA peak, (add 120 mA for display lamps, add 0.125 mA for each transmitter station received by console) at 4.4 VDC
Power Adapter	5 VDC, 300 mA
Battery Backup	3 C-cells
Battery Life (no AC power)	Up to 9 months (approximately)
Housing Material	UV-resistant ABS plastic
Console Display Type	LCD Transflective
Display Backlight	LEDs
Dimensions:
Console (with antenna)	7.5" x 5.75" x 4.5" (190 mm x 146 mm x 114 mm)
Console (with antenna) mounted on wall	7.5" x 7.0 " x 3.0" (190 mm x 178 mm x 76 mm)
Display	4.13" x 3.0" (105 mm x 76 mm)
Weight (with batteries)	1.48 lbs. (.67 kg)

Jual` Weather Station Davis Vantage Pro2

VANTAGE PRO2™

Vantage Pro2™ (6152, 6153) and Vantage Pro2™ Plus (6162, 6163) Wireless Weather Stations include two components: the Integrated Sensor Suite (ISS) which houses and manages the external sensor array, and the console which provides the user interface, data display, and calculations. The ISS and Vantage Pro2 console communicate via an FCC‐certified, license‐free, spread‐spectrum frequency‐hopping (FHSS) transmitter and receiver. User‐ selectable transmitter ID codes allow up to eight stations to coexist in the same geographic area. The frequency hopping spread spectrum technology provides greater communication strength over longer distances and areas of weaker reception. The Wireless Vantage Pro2™ Plus weather station includes two additional sensors that are optional on the Vantage Pro2: the UV sensor and the solar radiation sensor. The console may be powered by batteries or by the included AC‐power adapter. The wireless ISS is solar powered with a battery backup. Use WeatherLink™ for Vantage Pro and Vantage Pro2 to let your weather station interface with a computer, to log weather data, and to upload weather information to the internet.

The 6152 and 6162 rely on passive shielding to reduce solar‐radiation induced temperature errors in the outside temperature sensor readings. The Fan‐aspirated 6153 and 6163 combine passive shielding with a solar‐powered fan that draws outside air in over the temperature and humidity sensors, providing a much more accurate temperature reading than that available using passive shielding alone.

Integrated Sensor Suite (ISS)
Operating Temperature	-40° to +150°F (-40° to +65°C)
Non-operating Temperature	-40° to +158°F (-40° to +70°C)
Current Draw (ISS SIM only)	0.14 mA (average), 30 mA (peak) at 4 to 6 VDC
Solar Power Panel	0.5 Watts (ISS SIM), plus 0.75 Watts (Fan-Aspirated)
Battery (ISS SIM /Fan-Aspirated)	CR-123 3-Volt Lithium cell / 2 - 1.2 Volt NiCad C-cells
Battery Life (3-Volt Lithium cell)	8 months without sunlight - greater than 2 years depending on solar charging
Battery Life (NiCad C-cells)	1 year
Fan Aspiration Rate (Fan-Aspirated Only)	190 feet/min. (0.9 m/s) (full sun), 80 feet/min. (0.4 m/s) (battery only) (intake flow rate) 500 feet/min. (2.5 m/s) (full sun), 280 feet/min. (1.4 m/s) (battery only) (sensor chamber flow rate)
Connectors, Sensor	Modular RJ-11
Cable Type	4-conductor, 26 AWG
Cable Length, Anemometer	40’ (12 m) (included) 540’ (165 m) (maximum recommended)
Wind Speed Sensor	Wind cups with magnetic switch
Wind Direction Sensor	Wind vane with potentiometer
Rain Collector Type	Tipping bucket, 0.01" per tip (0.2 mm with metric rain adapter), 33.2 in2 (214 cm2) collection area
Temperature Sensor Type	PN Junction Silicon Diode
Relative Humidity Sensor Type	Film capacitor element
Housing Material	UV-resistant ABS, ASA plastic

Console
Console Operating Temperature	+32° to +140°F (0° to +60°C)
Non-Operating (Storage) Temperature	+14° to +158°F (-10° to +70°C)
Current Draw	0.9 mA average, 30 mA peak, (add 120 mA for display lamps, add 0.125 mA for each optional wireless transmitter received by the console) at 4 - 6 VDC
AC Power Adapter	5 VDC, 300 mA, regulated
Batteries	3 C-cells
Battery Life	up to 9 months
Connectors	Modular RJ-11
Housing Material	UV-resistant ABS plastic
Console Display Type	LCD Transflective
Display Backlight	LEDs
Dimensions (console: length x width x height, display length x height)
Console with antenna down	10.625" x 6.125" x 1.625" (270 mm x 156 mm x 41 mm)
Console with antenna extended up	10.625" x 9.625" x 1.625" (270 mm x 245 mm x 41 mm)
Display	5.94" x 3.375" (151 mm x 86 mm)
Weight (with batteries)	1.88 lbs. (.85 kg)

Jual` Rain Gauge Neta

Neta 250mm Professional Rain Gauge

Measures up to 250mm of rainfall
Small inner cylinder is highly accurate with 1mm increments
Large outer cyliner allows for extra heavy rainfall
Easy to install with supplied mounting bracket
Rainfall chart included
UV Stabilised

Sabtu, 17 November 2012

Jual` Laser Distancemeter Leica Disto D5

Leica DISTO™ D5
Your powerful partner for outdoors

World First: First laser distance meter with digital Pointfinder (4x zoom), large 2.4“ color display and ± 45°tilt sensor is now available!

The Leica DISTO™ D5 is designed with many functions and features to make measuring easier, particularly when you are working outdoors.
Digital Pointfinder with 4x zoom
Large colour display screen (2.4 inches)
Inclination measurement up to ± 45°
Power Range Technology™
Robust with IP 54

Description

Digital Pointfinder
The integrated digital Pointfinder with a 4x zoom and 2.4“ color display makes finding the target at long distances much easier. Its high resolution capability provides a sharp, crystal-clear image, which allows measurements to be taken even in glaring sunshine.

Tilt sensor
Thanks to the in-built tilt sensor, you can quickly and simply measure tilts up to ± 45°. The tilt sensor also allows you to measure absolutely horizontally or measure past obstructions (horizontal distance).

Power Range Technology™
The integrated Power Range Technology™ allows you to measure long distances very simply. Measure up to 100 m without a target plate, and even up to 200 m using a target plate, without having to take a single step.

Spot-on measurement
The laser makes it possible! The laser dot is clearly visible, therefore you always know exactly where you are measuring, which is especially useful in difficult to access places. So you can take absolutely precise measurements, even over long distances.

Details displayed
Additional information about the measurements, e.g. room dimensions or angles, is available at the touch of a button.
Product Information

Features	Your advantages
Measuring range of 0.05 up to 200 m (0.16 ft up to 650 ft) typ. accuracy ± 1.0 mm (± 0.04 in)	Precise, quick and reliable measurements
Digital Pointfinder with 4x zoom and high resolution color display	Convenient measuring to distant objects, even in strong sunlight
Power Range Technology™	Measure long distances, up to 100 m without and 200 m with a target plate
Tilt sensor	Measure vertical angles up to ± 45° at the touch of a button
Horizontal distance measurement using the tilt sensor	It's no problem to determine distances despite obstructions
Trapezium function	Simple and quick measurement of roof slopes and facade areas
Pythagorean functions	Indirect height and width measurements at inaccessible positions
Detailed display	Additional measurement information available at a touch of a button, e.g. angle information

Delivery Package

Holster
Hand loop
2 AA batteries
Manual / safety instructions
Producer certificate M in accordance with DIN 55350-18-4.2.2
Quickstart guide

Jual` Laser Distancemeter Leica Disto D2

The small partner - for indoor applications

Measuring distances and calculating results with the smallest laser distance meter of the world.

The compact and handy base model was specifically designed for indoor applications. Shortcut keys for addition, subtraction, area and volume calculation make measuring fast and very reliable. The last 10 measurements are also stored. As with all Leica laser distance meters, the laser dot is clearly visible. You can always see your targeting point, even if the target object is in a hard to access area. Leica DISTO™ D2 – you will never use a measuring tape again!

Description

Quick and easy
Measure distances at the touch of a button and calculate areas or volumes.

Measure from edges or corners
With the flip-out end-piece you are equipped for any measuring situation.

Small and handy
Thanks to its ergonomic and compact design with soft grip, the Leica DISTO™ D2 sits securely in your hand and fits into any pocket.

Clear display
The results are shown on a 3-line display. The illuminated display is easily readable, even in the dark.

Simply clever
Minimum / maximum measurements, tracking and storage of results makes your work much easier.

Product Information

Features	Your advantages
Measuring range 0.05 m up to 60 m (0.16 ft up to 197 ft) typ. accuracy ± 1.5 mm (± 0.06in)	Precise, fast and reliable indoor measurements
Shortcut keys	Easy-to-use and rapid access to frequently used functions
Illuminated 3-line display	Measured values can be read even in the dark
Flip-out end-piece	Measure from edges or corners
Stake out function	Stake-out equal distances
Time delay release	Measure without shake
Simple Pythagorean functions	Indirect height and width measurements for inaccessible positions
IP 54	Splash and dust proof

Delivery Package

holster: stows everything away neatly
hand loop: secures the instrument at all heights

Jual` Laser Distancemeter Leica Disto D8

Leica DISTO™ D8
The versatile one for in- and outdoor

The most versatile laser distance meter in the world! Equipped with a digital Pointfinder, high-resolution 2.4“ colour display, 360° tilt sensor and bluetooth® technology, the Leica DISTO™ D8 is a real world first and offers completely new measuring options.

Digital Pointfinder with 4x zoom
Large colour display screen (2.4 inches)
360° Inclination measurement
Bluetooth® - reliable data transfer
DISTO™ transfer software and AutoCAD® plug-in included

Description

360° tilt sensor
The combination of angle and distance measurements allows you to determine distances where conventional methods fail. The horizontal distance, for example, can also be determined quickly and efficiently past obstacles or the elevation of a tree, even though there is no reflective point.

Digital Pointfinder
Thanks to the digital Pointfinder with its 4x zoom and high resolution 2,4“ colour display, you can measure long range distances quickly and easily because you always see your targeted point.

Bluetooth®
With integrated Bluetooth® technology, measurement results can be wirelessly and accurately transferred to Pocket PCs and PCs. Thus you can easily process your data in Excel®, Word®, AutoCAD® and other programs.

Free software
The delivery package contains the transfer software “Leica DISTO™ Transfer” – easy to install and with automatic updates. The AutoCAD® plug-in additionally allows convenient planning and drawing with your AutoCAD® software.

Product Information

Features	Your advantages
Measuring range of 0.05 m up to 200 m (0.16 ft up to 650 ft) typ. accuracy ± 1.0 mm / ± 0.04 in	Precise, quick and reliable measurements
Bluetooth®	Error-free and quick data transfer to Pocket PC or PC
“Leica DISTO™ Transfer” software is included	Easy transfer for further processing in Excel®, Word®, AutoCAD® or other Windows-based programs
AutoCAD® plug-In	Convenient drawing using your AutoCAD® software
360° tilt sensor	Measure any slope, even overhead
Digital Pointfinder with 4x zoom and high resolution colour display	Convenient measurement of distant objects, even in bright sunlight
Indirect measurement functions with tilt sensor	Determine distances to objects that cannot be measured directly because they lack reflective points
Height profile measurements	Determine spot heights and ground profiles

Delivery Package

Holster
Hand loop
2 AA batteries
Target plate
Manual / safety instructions
Producer certificate M in accordance with DIN 55350-18-4.2.2
Quickstart guide
CD with Leica DISTO™ Transfer for PC and PPC, AutoCAD® PlugIn

Jual` Laser Distancemeter Leica Disto DXT

Tough enough!

The Leica DISTO™ DXT is the only laser distance meter, which is protected against jet water and is absolutely tight against dust – according to IP 65. This ensures, that it operates precisely, even at very unpleasant conditions.

Description

Dust-proof and jet water protected IP65
The housing and keypad are specially sealed against water and dust. Cleaning under running water is no problem.

Robust
The sensitive measuring elements are protected by solid rubber parts. The Leica DISTO™ DXT is therefore particularly resistant and endures drop tests from 2m height.

Multifunctional end-piece
Whether measuring out of corners, slots or from edges, with this endpiece you are prepared for all measuring situations. The instrument detects the endpiece automatically, which helps you to avoid expensive measuring errors.

Functionality
The Leica DISTO™ DXT has a diverse range of functions, e.g. addition, subtraction, area, volume, Pythagoras, continuous measurement and minimum/maximum measurement.

Product Information

Features	Your advantages
Measuring range 0.05 to 70 m Typ. accuracy ± 1.5 mm	Precise, quick and reliable measurements.
Sealed keypad	For measurements in extremely dusty environments. Easy to clean under running water.
Solid rubber housing	Endures drop tests from 2 m height.
Hard-wearing, illuminated display	Measured values can be read, even in the dark.
Flip-out end-piece with automatic detection	Reliable, trouble free and error free measurement from edges or out of corners.
Minimum and maximum measurement function	Horizontal and diagonal measurements, e.g. in corners.
Room dimensions	Values such as circumference, wall area, floor or ceiling area are displayed at the touch of a button.
Continuous measurement	Simple and quick staking out.
IP65	Dust-proof and jet water protected

Delivery Package

Holster
Hand loop
2 AAA batteries
CD with manual / safety instructions
Quickstart guide

Jual` Laser Distancemeter Leica Disto X310

Robust multifunctionality!

New: The new Leica DISTO™ X310 is the only laser distance meter to be dust-tight and protected against water jets – to IP65. In addition, it passes drop tests of up to 2 m height. Thanks to the integrated tilt sensor, it can take indirect distance and height measurements absolutely precisely.

Leica DISTO™ X310 – guarantees reliable measurements, even under the harshest conditions.

IP65 water jet protection and dust-tight
360° tilt sensor
Smart Horizontal Mode™
Height tracking
Power Range Technology™
Illuminated 4-line display
Automatic multifunctional end-piece

Description

ISO Standard 16331-1 – The standard for laser distance meters
The range and accuracy of laser distance meters depend on light conditions and reflectivity of the measuring target. For Leica Geosystems it is important that the instruments not only perform under perfect laboratory conditions, but above all under the kind of everyday working conditions encountered on construction sites. This is why, working together with external experts, the company have developed a standard by which laser distance meters can be tested and compared with each other.

Robust housing
The sensitive measuring elements are protected by solid rubber parts. Proven in drop tests from up to 2 m height, the Leica DISTO™ X310 is therefore particularly resistant.

Protection class IP65
The housing and keypad are specially sealed against water and dust. Cleaning under running water is also no problem.

Tilt sensor 360°
Thanks to the combination of distance and tilt measurements, you can determine the horizontal distance absolutely precisely and simply – even past obstructions. With the help of the tilt sensor, you can also determine indirect heights.

Smart Horizontal Mode™
If obstructions prevent you from taking direct distance measure-ments, you can use the Smart Horizontal Mode™ to determine the horizontal distance simply and absolutely precisely.

Product Information

Technical specifications:
Typical measuring accuracy	± 1 mm
Range	up to 80 m
Measuring units	0.000 m, 0.0000 m, 0.00 m, 0.00 ft, 0‘00‘‘ 1/32, 0.0 in, 0 in 1/32
Power Range Technology™	•
Distance in m Ø of the laser dot in mm	10, 50, 100 m 6, 30, 60 mm
Protection class	IP65 – water jet protection and dust-tight
Measurements per set of batteries	up to 5000
Batteries	type AAA 2 × 1,5 V
Dimensions	122 × 55 × 31 mm
Weight with batteries	155 g
Functions:
Min/max measurement	•
Continuous measurement	•
Stake out function	•
Addition/subtraction	•
Area/volume	•
Painter function	•
Pythagoras	3 points, partial height
Smart Horizontal Mode™	•
Height tracking	•
Memory	20 Displays
Illuminated display	•
Multifunctional end-piece	with automatic recognition

Delivery Package :

Leica DISTO™ X310 laser distance meter
Holster
Hand loop
Batteries

Jual` Laser Distancemeter Leica Disto D3a

Leica DISTO™ D3a
Smart Horizontal Mode™ - absolute precise measurements

Description

Smart Horizontal Mode™
Thanks to the combination of distance and tilt measurements you can determine the horizontal distance precisely and simply. If you take a measurement at an inclination of ± 45°, the Leica DISTO™ D3a always calculates the shortest distance. So you can measure quickly and easily, even over the top of objects and people.

Multiple functions
The Leica DISTO™ D3a can calculate rectangular and triangular areas, volumes, room dimensions and various types of Pythagoras functions. A time delay release and enough memory for up to 20 measurements round off the instrument's wide range of functions – a concept designed to make your work life easier.

Multifunctional endpiece
Aim the instrument straight at the target point, whether measuring out of corners, slots or from edges: with this endpiece you are prepared for all measuring situations. The instrument detects the endpiece automatically, which helps you avoid expensive measuring errors.

Power Range Technology™
The integrated Power Range Technology™ makes measuring long distances very easy. You can measure up to 80 m without a target plate and even up 100 m with a target plate, without having to take single step.

Brilliant and clearly arranged display
The results are displayed on the large (2”), clearly arranged and high contrast display. At the touch of a button, the display makes supplementary information available about the measurements, e.g. indirect height, room dimensions, angle information or room angles.

Product Information

Features	Your advantages
Measuring range 0.05 to 100 m Typ. accuracy ± 1.0 mm	Precise, quick and reliable measurements
Smart Horizontal Mode ™	Determine precise horizontal distances at the press of a key
Tilt sensor	Measure angles up to ± 45° at the touch of a button
Flip-out end-piece with automatic detection	Reliable, trouble-free and error-free measurement from edges or out of corners
Pythagoras functions	Indirect height and width measurements in inaccessible positions
Room dimensions	Values such as total wall length, wall and ceiling area are available at the touch of a button
Stake out function	Stake out equal or two different recurring distances
Triangle function	Determine the area of a many-cornered room efficiently

Delivery Package

Holster
Hand loop
2 AAA batteries
Target plate
CD with manual / safety instructions
Producer certificate M in accordance with DIN 55350-18-4.2.2
Quickstart guide
